These color-changing threads of fabric could become a brilliant new form of protection for workers and employees who work in close proximity to dangerous gases.
Engineers from Tufts University have developed a novel fabrication method to create dyed threads that change color when they detect a variety of harmful gases. Woven into clothing, smart, gas-detecting threads could provide a reusable, washable, and affordable safety asset in medical, workplace, military, and rescue environments, they say.
The study, published today in the journal Scientific Reports, describes the fabrication method and its ability to extend to a wide range of dyes and detection of complex gas mixtures. The researchers demonstrated that the threads can be read visually, or even more precisely by use of a smartphone camera, to detect changes of color due to analytes as low as 50 parts per million.
While not replacing the precision of electronic devices commonly used to detect volatile gases, incorporation of gas detection into textiles enables an equipment-free readout, without the need for specialized training, the researchers say. Such an approach could make the technology accessible to a general workforce, or to low-resource communities that can benefit from the information the textiles provide.
The study used a manganese-based dye, MnTPP, methyl red, and bromothymol blue to prove the concept. MnTPP and bromothymol blue can detect ammonia while methyl red can detect hydrogen chloride – gases commonly released from cleaning supplies, fertilizer, and from chemical and material production.
A three-step process “traps” the dye in the thread. The thread is first dipped in the dye, then treated with acetic acid, which makes the surface coarser and swells the fiber, possibly allowing more binding interactions between the dye and tread. Finally, the thread is treated with polydimethylsiloxane (PDMS), which creates a flexible, physical seal around the thread and dye, which also repels water and prevents dye from leaching during washing. Importantly, the PDMS is also gas permeable, allowing the analytes to reach the optical dyes.
“The dyes we used work in different ways, so we can detect gases with different chemistries,” said Sameer Sonkusale, professor of electrical and computer engineering at Tufts University’s School of Engineering and corresponding author of the study. “But since we are using a method that effectively traps the dye to the thread, rather than relying so much on binding chemistry, we have more flexibility to use dyes with a wide range of functional chemistries to detect different types of gases,” he said.
LOOK: After Wildly Successful Crowdfunding, You Can Now Order Bike Helmets That Look Like Regular Hats
Sonkusale’s team used simple dyes that detect gases with acid or base properties. The tested dyes changed color in a way that is dependent and proportional to the concentration of the gas as measured using spectroscopic methods. In between the precision of a spectrometer and the human eye is the possibility of using smart phones to read out and quantify the color changes or interpret color signatures using multiple threads and dyes.
“That would allow us to scale up the detection to measure many analytes at once, or to distinguish analytes with unique colorimetric signatures,” said Sonkusale.
The threads even worked under water, detecting the existence of dissolved ammonia.
MORE: NASA Engineer Saves Passenger Jet From Disaster When He Spots Malfunction From Window Seat
“While the PDMS sealant is hydrophobic and keeps water off the thread, the dissolved gases can still reach the dye to be quantified,” said Rachel Owyeung, lead author and graduate student in the Tufts Department of Chemical and Biological Engineering. “As dissolved gas sensors, we imagine smart fabrics detecting carbon dioxide or other volatile organic compounds during oil and gas exploration as one possible application.”
Since repeated washing or use underwater does not dilute the dye, the threads can be relied upon for consistent quantifiable detection many times over, the researchers said.
(Source: Tufts University)

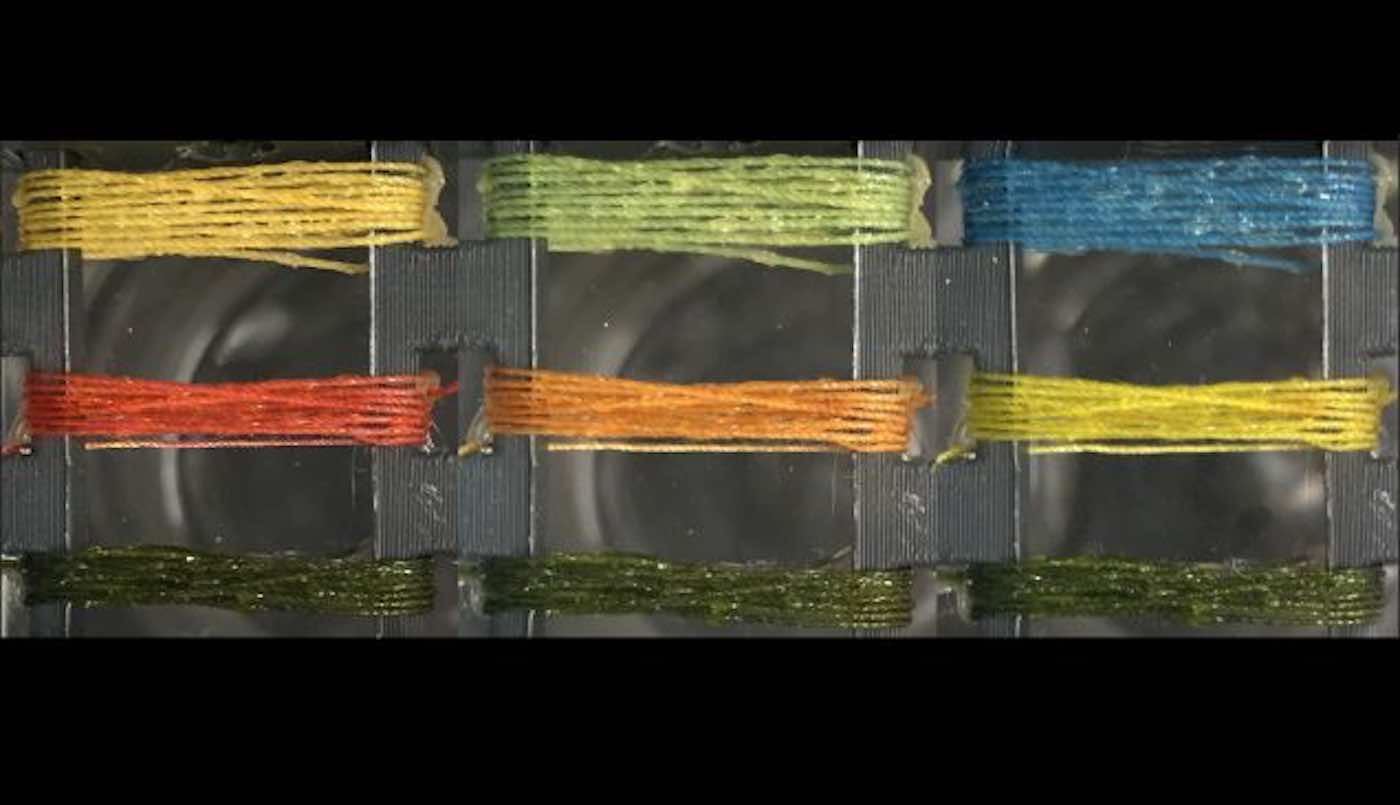

Color Your News Feed With Positivity By Sharing The Good News With Your Friends On Social Media – Photo by Rachel Owyeung / Tufts University
